Metal Roof Retrofit for Texas Medical Centers How to Protect Patients and Operations

A metal roof retrofit* can renew an eligible Texas medical-center roof without automatically removing every existing panel or interrupting patient care. Success depends on more than selecting a membrane, coating, or metal panel. The plan must protect patients, clinicians, visitors, equipment, entrances, emergency routes, air intakes, sterile or sensitive areas, and continuous building services while producing an assembly that meets project-specific wind, fire, drainage, structural, and warranty requirements.

Showtime Exteriors provides commercial metal-roof inspection, repair, restoration, retrofit planning, recover, and replacement across Texas. The team evaluates panels, seams, fasteners, corrosion, insulation, condensation, drainage, HVAC, exhaust, curbs, penetrations, emergency access, facility operations, safety, and long-term maintenance before recommending a path.

Property owners can review Showtime Exteriors' commercial roofing services, Texas roofing services, commercial roofing resources, contact Showtime Exteriors, commercial project references, and commercial roof inspection reporting guide. Call 817-400-ROOF (7663)* to request a property-specific commercial roof evaluation.

Industry resources include the Metal Construction Association, Metal Building Manufacturers Association, and National Roofing Contractors Association. The Federal Emergency Management Agency provides building-science guidance, the U.S. Department of Energy discusses cool roofs, and the Occupational Safety and Health Administration addresses roofing safety. Adopted codes, product approvals, engineering, manufacturers, and site conditions must govern the final system.

What Is a Metal Roof Retrofit?

A metal roof retrofit installs a new protective assembly over or above an eligible existing metal roof. Unlike a localized repair, it addresses the roof field and critical details as an integrated system. Unlike complete replacement, it may retain serviceable panels or structural components after attachment, corrosion, moisture, load, and compatibility questions are resolved.

Metal-Over-Metal Retrofit

An engineered metal-over-metal system uses subframing or clips to create a support plane above the existing roof, followed by new panels and coordinated flashings. Structural capacity, attachment, movement, height, transitions, curbs, gutters, canopies, added loads, and wind zones must be addressed.

Single-Ply Membrane Retrofit

A membrane retrofit may use flute-fill insulation between metal ribs, additional insulation or cover board, and a TPO or PVC membrane. Pullout values, substrate condition, corners, perimeters, penetrations, fire classification, and wind design influence the assembly. Wet insulation or active corrosion should not be concealed.

Coating Restoration

A coating scope may include fastener replacement, seam reinforcement, rust treatment, penetration repairs, cleaning, primer, fabric where specified, and finish coats at required thickness. Coating does not restore missing metal, strengthen weak structure, remove trapped moisture, or solve uncontrolled condensation.

Why Medical Centers Require Specialized Roof Planning

Medical buildings may include clinics, imaging centers, ambulatory surgery facilities, laboratories, pharmacies, urgent-care operations, rehabilitation spaces, medical offices, and support areas. Their roofs can carry dense mechanical systems, exhaust, piping, communications equipment, emergency power components, and access routes. A roof project must be coordinated with the facility rather than treated as ordinary exterior construction.

Patient Care Comes First

Roofing activity can create noise, vibration, odor, dust, temporary access changes, and equipment coordination needs. The facility should identify treatment spaces, procedure schedules, imaging areas, laboratories, pharmacies, behavioral-health spaces, and other sensitive locations below planned work. The roofing sequence can then be adjusted around known risk rather than reacting after disruption occurs.

Infection Control and Environmental Risk

The medical facility determines whether infection-control procedures apply. Cutting, drilling, sweeping, demolition, pressure washing, and debris handling can release particles. Primers, adhesives, coatings, sealants, and cleaning materials can create odors or vapors. Controls may include protected intakes, interior barriers, negative pressure, filtration, monitoring, housekeeping, restricted work periods, or temporary relocation of sensitive activity. Roofing personnel should follow the facility's approved plan without representing themselves as infection-control authorities.

Air Intakes Exhaust and Pressure Relationships

Outside-air intakes may be close to the roof surface, while exhaust outlets can serve isolation rooms, laboratories, pharmacies, kitchens, restrooms, sterilization equipment, or general ventilation. Work near these components requires coordination with qualified facility and mechanical personnel. Blocking an outlet, moving a curb, or allowing fumes into an intake can create a building problem unrelated to membrane installation quality.

Critical Equipment and Utilities

Medical rooftops may include HVAC units, medical-gas related piping, generators, electrical equipment, communications systems, cooling components, fire protection, and specialty exhaust. The owner should identify equipment that cannot be shut down and the personnel authorized to operate it. Roofing crews should not disconnect, move, or modify critical systems without approved coordination.

Emergency and Accessible Routes

Material deliveries, cranes, lifts, dumpsters, and crew vehicles must not obstruct ambulance approaches, fire lanes, emergency exits, accessible parking, patient drop-off, or public entrances. The logistics plan should show where equipment will operate and how traffic will be separated. Temporary changes require facility approval and clear communication.

Medical Center Retrofit Options

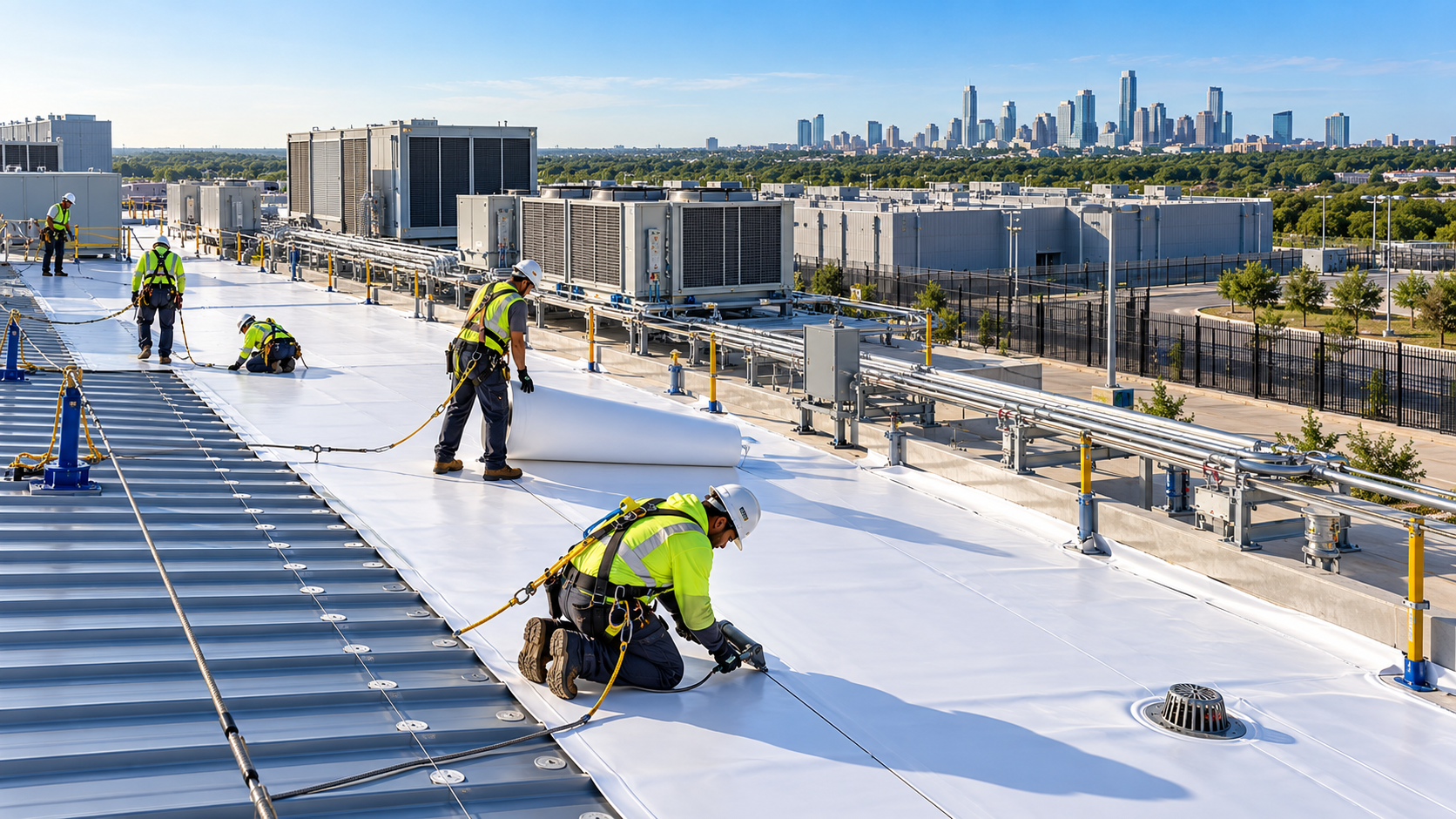

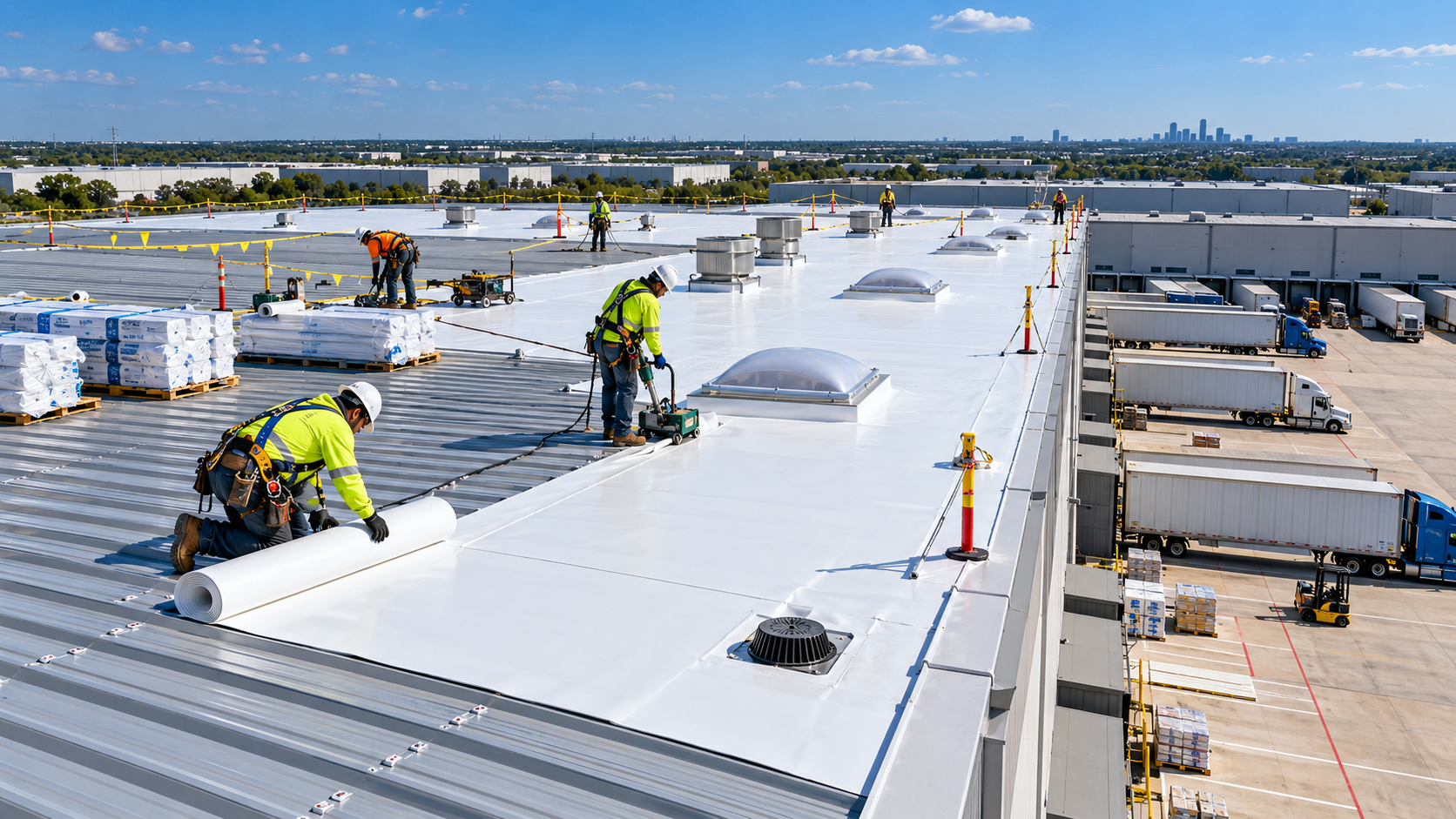

TPO or PVC Membrane Over Metal

For an eligible metal roof, flute-fill insulation can level spaces between ribs. Continuous insulation or cover board can create a stable surface for a TPO or PVC membrane. This approach separates new waterproofing from many recurring panel seams, but the assembly must address substrate condition, fastener pullout, wind zones, fire classification, drainage, curbs, exhaust exposure, and manufacturer requirements.

Membrane selection should consider documented rooftop conditions. Exhaust, oils, chemicals, service traffic, and cleaning practices can affect compatibility. A general statement that one membrane is always superior is not a substitute for project-specific design and written manufacturer guidance.

Engineered Metal Over Metal

An engineered metal-over-metal assembly installs framing, clips, panels, closures, and flashings above an eligible roof. It may retain a metal exterior and reduce removal, but structure, attachment, thermal movement, geometry, condensation, curbs, equipment clearances, wind, and drainage must be addressed. The new assembly cannot block service access or emergency equipment.

Coating Restoration

A fluid-applied coating may be appropriate when panels are structurally sound, dry, compatible, and repairable. Work may include cleaning, corrosion treatment, primer, fastener replacement, seam reinforcement, flashing repairs, fabric, base coat, and finish coat at specified application rates. Adhesion tests should represent actual rooftop conditions.

Coating is not a shortcut for perforated panels, unstable attachment, saturated insulation, severe corrosion, or uncontrolled condensation. Preparation methods and product odors also require facility review when occupied medical spaces are below the roof.

Selective Removal and Hybrid Work

Medical campuses often contain additions built in different years. One area may have metal panels while another uses single-ply, modified bitumen, or an aging gravel-surfaced built-up roof. Wet or deteriorated zones may require removal while sound areas qualify for retrofit. Transitions must account for height, drainage, movement, material compatibility, access, and future maintenance.

How to Protect Patients and Operations During Construction

Establish a Facility Coordination Team

The owner should identify representatives from facilities, safety, infection prevention, clinical operations, security, emergency management, and mechanical or electrical services as appropriate. The contractor needs one authorized contact for decisions and a clear escalation path. Regular coordination meetings should review upcoming zones, weather, access, equipment impacts, noise, odors, and interior protection.

Divide the Roof Into Controlled Zones

Each work zone should align with roof geometry and the spaces below it. The plan should identify access, staging, fall protection, temporary weatherproofing, debris control, and daily dry-in. Work over procedure rooms, imaging, pharmacies, laboratories, information systems, or high-value equipment may require additional protection or approved scheduling windows.

Coordinate Noise and Vibration

Fastening, drilling, cutting, demolition, and equipment movement can transmit sound and vibration through the structure. Facilities should identify activities that are sensitive to disturbance. The look-ahead schedule can reserve noisy work for appropriate periods and require confirmation before crews begin above a critical department.

Manage Dust Odors and Air Movement

The project team should review products and methods before use. Outside-air intakes may need temporary controls directed by facility personnel. Interior barriers, particle collection, protected ceiling areas, and housekeeping may be required. Weather, wind direction, temperature, and building pressure can change how odors or particles travel, so controls should be verified throughout the work.

Maintain Emergency Readiness

Roofing must not block smoke vents, fire department access, roof hatches, fire protection equipment, emergency pathways, or required exhaust. Temporary impairments should follow facility procedures. The contractor's emergency plan should include severe weather, water entry, fire alarms, medical events, and rapid removal of equipment from designated routes.

Use Strict Daily Dry In Procedures

Open work should remain limited to an area that can be secured before weather changes or the crew leaves. Materials must be restrained for wind, drainage must remain functional, and temporary closures should be inspected. The rain-response plan should identify interior contacts, emergency materials, responsible personnel, and after-hours communication.

Medical Rooftop Equipment and Penetrations

Medical roofs can accumulate penetrations through expansions and equipment replacement. Each curb, pipe, duct, conduit, vent, support, hatch, and abandoned opening should be mapped and assigned a treatment. Only authorized facility personnel should confirm whether equipment is inactive and can be removed.

Added insulation or framing can raise the finished roof plane. Curb height, equipment doors, service panels, piping, electrical clearances, condensate, ladders, platforms, and service paths must remain functional. Equipment supports should transfer loads appropriately and use approved roof details.

Moisture Condensation and Indoor Investigations

Interior moisture does not always originate from rain. Air leakage, humidity, pressure differences, cold surfaces, compressed insulation, thermal bridges, plumbing, mechanical discharge, and condensation can produce similar symptoms. Inspection may include moisture scanning, test cuts, insulation sampling, interior observation, and review of leak timing.

A retrofit should not trap wet materials or conceal active corrosion. When building-science conditions are complex, qualified professionals should evaluate air, vapor, thermal, and moisture behavior. A new exterior surface alone may not correct an interior humidity or pressure problem.

Fire Wind Structure and Code Requirements

Medical properties can have demanding continuity and insurer expectations. The completed assembly should comply with adopted code, tested-system limitations, manufacturer requirements, and project-specific fire and wind criteria. Corners, perimeters, roof edges, large openings, transitions, and canopies deserve particular attention.

Added layers create dead load, while stored materials and equipment create temporary concentrated loads. Existing corrosion, long spans, previous modifications, future solar plans, and heavy rooftop equipment can affect capacity. Structural review or engineering should be obtained when conditions or the proposed system require it.

Cost and Business Continuity

Price depends on area, height, access, panel profile, corrosion, moisture, structural repairs, insulation, system selection, equipment density, exhaust, curbs, drainage, cranes, lifts, testing, engineering, restricted hours, interior protection, permits, warranty, and market conditions. A reliable budget requires measurements and a defined scope.

The lowest bid may transfer operational risk to the owner if it excludes protection, equipment coordination, wet-material removal, enhanced wind zones, manufacturer inspection, or after-hours work. Proposals should separate base work, allowances, unit prices, optional upgrades, exclusions, and responsibilities for facility coordination.

Quality Control and Medical Facility Closeout

Daily reports should record weather, crew, roof zone, interior zone, controls, work completed, testing, photographs, concealed conditions, temporary closures, cleanup, and operational impacts. The facility needs a direct method to report noise, odor, water, access, or equipment concerns immediately.

Membrane work may require seam probing, weld checks, fastener verification, adhesive control, and manufacturer inspection. Coatings require preparation verification, adhesion testing, coverage tracking, wet-film readings, cure checks, and thickness confirmation. Metal systems require checks of subframing, clips, fasteners, closures, alignment, flashings, and sealants.

Closeout should include roof plans, approved submittals, engineering, tests, photographs, daily reports, inspection records, warranties, maintenance instructions, and authorized repair details. The facility should control roof access and require coordination before future mechanical, electrical, communications, solar, or facility work changes the completed system.

Signs a Medical Center Metal Roof May Need Retrofit

Potential indicators include recurring leaks, backed-out fasteners, deteriorated washers, enlarged holes, open laps, displaced closures, failed sealant, coating loss, widespread surface corrosion, perforation, loose edge metal, damaged panels, condensation, wet insulation, repeated patching, and obsolete details that are difficult to maintain.

One isolated leak does not automatically justify a full retrofit. Conversely, dozens of patches do not prove the underlying roof is a sound substrate. The purpose of evaluation is to distinguish local service needs from assembly-wide risk.

The Medical Center Metal Roof Retrofit Evaluation Process

Medical-center retrofit planning should evaluate HVAC, critical exhaust, air intakes, utilities, drainage, access, and clinical schedules.

1. Identify the Existing Metal System

Document whether the roof is standing seam, through-fastened, structural, architectural, insulated metal panel, or another assembly. Record panel profile, gauge when known, seam type, clip or fastener arrangement, finish, slope, age, repairs, warranties, and known leakage.

2. Inspect Structure and Attachment

The retrofit must transfer wind and other loads into suitable supports. Inspect accessible purlins, joists, deck, panels, clips, fasteners, welds, and transitions. Pullout testing, engineering, or selective openings may be required. A new assembly should not rely on corroded or inadequately connected components without a documented design.

3. Investigate Moisture and Condensation

Interior humidity, air leakage, missing vapor control, compressed insulation, thermal bridging, and temperature differences can create condensation that resembles a roof leak. Moisture scanning, test cuts, insulation sampling, and interior observations may help. Trapping wet materials beneath a retrofit can accelerate corrosion and reduce thermal performance.

4. Evaluate Corrosion

Surface oxidation, coating failure, section loss, and perforation require different responses. Preparation and compatible primers may address limited surface corrosion. Significant loss at panels, fasteners, purlins, or structural connections may require replacement or engineering. Coating over loose rust does not restore missing metal.

5. Review Drainage and Geometry

Inspect gutters, downspouts, internal drains, valleys, end laps, low areas, curbs, transitions, parapets, canopies, and additions. A retrofit changes elevations and can redirect water. New insulation, framing, or panels must not create dams or discharge onto vulnerable walls and foundations.

6. Map Penetrations and Rooftop Operations

HVAC units, vents, pipes, skylights, hatches, solar equipment, conduits, platforms, walkways, and future equipment affect detailing and sequencing. Unused penetrations may be removed; active components need coordinated curbs and flashings. Facilities teams should identify planned changes before design.

Repair, Restore, Retrofit, or Replace?

Choose Repair for Localized, Correctable Defects

Repair may be appropriate when adjacent metal and supports remain serviceable and the failure mechanism is limited. Examples include a localized flashing defect, isolated puncture, small damaged panel area, limited fastener problem, or discrete penetration leak. Repairs must accommodate metal movement and use compatible materials.

Choose Restoration When the Roof Is Fundamentally Sound

Restoration may be viable when corrosion is limited, panels are stable, moisture is controlled, drainage is acceptable, and preparation can create a suitable surface. The scope should specify repairs, cleaning, rust treatment, primer, reinforcement, coating type, thickness, testing, and warranty requirements.

Choose Retrofit for an Eligible Existing Assembly

Retrofit may provide value when the existing roof can safely support and receive a new engineered system. It can reduce tear-off, landfill material, interior exposure, and operational disruption. Those advantages depend on qualification. Hidden moisture, weak attachment, corrosion, or incompatible geometry can turn a shortcut into a costly failure.

Choose Replacement When Conditions Are Too Deteriorated

Full removal and replacement may be responsible when panels or structural components have widespread section loss, moisture is extensive, condensation is uncontrolled, repeated repairs have failed, added loads are unsuitable, or the proposed retrofit cannot meet code, wind, fire, drainage, or warranty requirements.

Comparing Medical Center Roof Retrofit Proposals

There is no reliable statewide price without measurements and system definition. Cost depends on roof area, height, access, slope, panel profile, existing moisture, corrosion, structural repairs, insulation, cover board, membrane or metal selection, coating preparation, perimeter reinforcement, curbs, penetrations, gutters, cranes, lifts, phasing, testing, engineering, warranty, and market conditions.

Owners should compare detailed scopes rather than square-foot numbers alone. One proposal may include wet-insulation removal, flute fill, cover board, enhanced perimeter attachment, new curbs, gutters, manufacturer inspection, and warranty fees. Another may exclude those items. Unit prices for concealed work should be stated before construction.

Medical Center Roof Retrofit and Aging Gravel Surfaced BUR Areas

Some commercial properties contain multiple roof types. An addition may have metal while an older area has gravel-surfaced built-up roofing. The gravel area must not be presented as a benefit or assumed suitable for cover. Gravel can conceal cracks, blisters, deteriorated felts, old patches, erosion, and moisture pathways, complicating inspection and insurance review.

Transitions between metal and BUR require special attention. If the older assembly is wet, deteriorated, repeatedly leaking, or near the end of service, replacement with a visible and maintainable system may be more responsible than tying a new retrofit into uncertain materials.

Frequently Asked Questions About Medical Center Metal Retrofit

Is a metal roof retrofit the same as a coating?

No. Coating is one possible restoration approach. Retrofit may also mean a new membrane recovery assembly or engineered metal-over-metal roof. The scopes, qualifications, costs, and warranties differ.

Can every metal roof be retrofitted?

No. Structure, attachment, corrosion, moisture, condensation, slope, geometry, fire, wind, code, and manufacturer requirements must be evaluated.

Will retrofit stop condensation?

Not automatically. Condensation requires analysis of interior humidity, air movement, insulation, thermal bridging, vapor control, and climate. A new roof surface alone may not solve it.

Does retrofit avoid all tear-off?

It may reduce tear-off, but wet, damaged, unstable, incompatible, or code-limited materials may still need removal. Selective demolition is often necessary around details and repairs.

How long does a medical metal retrofit take?

Duration depends on size, access, system, repairs, weather, phasing, equipment, engineering, inspections, and operational restrictions. The proposal should include a realistic sequence and contingency plan.

Can a retrofit receive a warranty?

Potentially, if the assembly, contractor, substrate, testing, installation, and inspection satisfy the warranty provider's requirements. Owners should read exclusions and maintenance obligations.

Why Showtime Exteriors for Medical Center Metal Retrofit in Texas?

Showtime Exteriors understands that medical retrofit roofing is a property-specific decision. The company evaluates repair, coating restoration, membrane recover, engineered metal-over-metal systems, selective tear-off, and replacement while considering facility operations, patient or visitor safety, public protection, documentation, insurance concerns, and long-term maintenance.

Commercial property owners can call 817-400-ROOF (7663)* to request an inspection and practical scope. Recommendations should be based on observed conditions and project requirements, not a predetermined product.

Aging Gravel Surfaced BUR Areas Remain a Risk

Aging built-up roofing with gravel surfacing should be treated as an inspection, maintenance, leak-tracing, and insurance concern. Gravel can obscure cracks, blisters, deteriorated felts, failed laps, old patches, membrane erosion, and moisture pathways. Because the waterproofing surface is not fully visible, a quick walkover may not reveal the true condition.

Many gravel-surfaced BUR systems are also old and have incomplete repair histories. Age alone does not prove failure, but repeated leaks, concealed moisture, uncertain materials, and limited documentation increase risk. Some carriers may require additional evidence, restrict coverage, increase premiums, impose conditions, or decline renewal based on roof type, age, condition, claims, or underwriting rules.

A roofing contractor cannot promise a carrier's decision. The correct response is to investigate. Selected gravel may need to be displaced so the membrane can be examined. Moisture scanning, core samples, flashing review, drainage evaluation, and deck assessment may be appropriate. If the system is deteriorated, difficult to document, or near the end of useful service, replacement with a more visible and maintainable assembly may be the responsible long-term plan.

Showtime Exteriors does not frame gravel as a benefit or recommend cosmetic work that hides unresolved conditions. The goal is to give owners defensible documentation and a practical path before renewal deadlines, facility damage, or emergency failure forces a rushed decision.

Warranties: Ask What Is Actually Covered

Several warranties may apply. A material warranty may cover product defects. A contractor workmanship warranty may cover qualifying installation problems. A manufacturer system warranty may cover defined components and leak repairs when conditions are satisfied.

Ask who issues the warranty, what materials and labor are included, whether coverage is prorated, how service is requested, what maintenance is required, and whether the warranty transfers. A long term does not automatically mean broad protection.

Storm damage, unauthorized penetrations, structural movement, standing water, chemical exposure, abuse, equipment leaks, and work by other trades may be excluded. The Federal Trade Commission's warranty guidance offers general consumer information, but the actual contract and warranty govern the project.

What a Strong Medical Center Retrofit Proposal Should Include

A useful proposal identifies the existing roof, measured area, chosen retrofit assembly, attachment method, insulation values, cover board, panel or membrane specification, coating preparation where applicable, perimeters, corners, penetrations, transitions, curbs, gutters, drainage, traffic protection, testing, engineering, permits, cleanup, closeout, and warranty. It should distinguish confirmed quantities from allowances and explain exclusions clearly.

Ask how concealed conditions will be handled. The agreement should provide unit prices or a written change procedure for wet insulation, corroded panels, weakened supports, damaged deck, deteriorated fasteners, or unrecorded roof layers. It should identify who can authorize changes and how photographs will document conditions before they are covered.

Compare the proposed system with reasonable alternatives. A coating price should not be compared directly with an engineered membrane or metal-over-metal assembly without considering repairs, insulation, tear-off, expected service, maintenance, wind design, fire classification, warranties, and operational disruption. The lowest initial total can become expensive if it excludes moisture removal, perimeter reinforcement, access, or manufacturer requirements.

Before approval, confirm measurements, materials, load assumptions, attachment, condensation control, drainage, safety, phasing, testing, documentation, and service responsibility in writing. After completion, retain approved submittals, engineering, product data, photographs, daily reports, inspection records, invoices, warranties, and maintenance instructions with the property files. Schedule regular inspections and inspections after major storms. A documented maintenance history helps owners find small defects early, protects capital planning, and gives future contractors reliable information about the assembly.

Owners should also ask who will provide post-installation service and how a leak call will be investigated. The retrofit contractor should understand the installed assembly, maintain access to project records, and distinguish a roof defect from condensation, plumbing, wall leakage, or equipment discharge. Facility teams should avoid unauthorized penetrations and notify the roofer before HVAC, solar, electrical, or mechanical work changes the roof. Walk pads and designated routes can reduce traffic damage. Regular inspections should review seams, fasteners, coatings, flashings, curbs, gutters, drains, edges, and repairs. If corrosion, movement, ponding, or interior moisture returns, prompt investigation can prevent a limited condition from becoming a broad capital problem. A retrofit succeeds through design, workmanship, documentation, maintenance, and responsible rooftop coordination over time before the next severe Texas weather event tests the completed building enclosure.

Medical Center Metal Roof Retrofit Checklist

Before approval, confirm measurements, panel profile, structure, attachment, corrosion, moisture, condensation, drainage, wind design, fire classification, HVAC, exhaust, air intakes, penetrations, curbs, utilities, emergency routes, clinical schedules, interior protection, staging, permits, testing, warranty, and concealed-condition procedures.

The proposal should identify retained, repaired, and removed components. It should state the system, manufacturer, membrane or metal specification, flute fill, insulation, cover board, attachment, enhanced zones, flashings, curb modifications, drainage work, facility protections, daily dry-in, inspection requirements, and coordination responsibilities.

Before mobilization, establish contacts, a weekly look-ahead, daily notices, weather triggers, emergency procedures, material routes, lift locations, barriers, air-intake controls, interior protection, and approval steps for schedule changes. Confirm how procedure areas, laboratories, pharmacies, imaging, patient entrances, ambulance routes, accessible paths, deliveries, and critical equipment will be protected.

After completion, retain roof plans, approved submittals, engineering, test results, daily reports, photographs, manufacturer inspection records, warranties, maintenance instructions, and approved repair details. Control roof access and coordinate future HVAC, solar, electrical, communications, piping, and penetration work before it affects the roof.

Before returning the roof to normal service, complete a joint walkthrough with facility representatives. Confirm drainage, access paths, equipment clearances, temporary-protection removal, remaining corrective items, emergency contacts, and the next inspection date. Record every change so maintenance teams understand the completed assembly and its requirements.

Facility leaders should review the final report, confirm outstanding responsibilities, preserve warranty documents, and schedule inspections after major storms and severe Texas weather events.
