Retrofit Roof Drains: Complete Guide for Texas Commercial Buildings
Drain selection, inspection, installation, ponding, maintenance, and commercial project planning

A retrofit roof drain* can correct a vulnerable drainage point on an existing commercial roof without treating the drain as an isolated plumbing fixture. The right project integrates the drain body, sump, membrane, clamping components, insulation, deck opening, piping, overflow provisions, and discharge path. The wrong project merely places a new-looking component over unresolved slope, blockage, structural, or waterproofing problems.
Showtime Exteriors evaluates roof drainage as part of the entire building-envelope system. A recommendation may involve a retrofit drain, replacement drain, scupper repair, tapered insulation, cricket, gutter work, membrane repair, or a larger reroofing scope. The objective is to move water safely while preserving the roof assembly and building operations.
Property owners can review Showtime Exteriors' commercial roofing services, Texas roofing services, commercial roofing resources, contact Showtime Exteriors, commercial project references, and commercial roof inspection reporting guide. Call 817-400-ROOF (7663)* to request a property-specific commercial roof evaluation.
The National Roofing Contractors Association publishes roofing technical resources, while the Federal Emergency Management Agency provides building-science guidance related to severe weather. The Environmental Protection Agency explains stormwater-management responsibilities, the Occupational Safety and Health Administration addresses roofing safety, the National Weather Service provides official weather information, and the International Code Council develops widely used model codes. Local requirements, approved plans, and qualified professionals must control each project.
What Is a Retrofit Roof Drain?
A retrofit drain is designed to fit into or connect with an existing drain and leader system. Depending on the approved product and field conditions, it may use a compression seal, insert body, flange, clamping ring, strainer, and membrane-specific flashing method. The assembly must create a durable transition from the roof surface into the drainage pipe without relying on exposed caulk as the primary waterproofing.
Retrofit drains are often considered when the existing drain bowl is difficult to remove, the roof is being recovered, a new membrane is being installed, or an older drain connection needs a practical rehabilitation detail. They are not interchangeable. Pipe diameter, bowl condition, deck opening, leader alignment, roof-system compatibility, flow capacity, and manufacturer requirements determine whether a particular drain is suitable.
Retrofit Does Not Mean Universal
Commercial buildings may have cast-iron drains, plastic components, internal leaders, external downspouts, primary and overflow drains, scuppers, gutters, or combinations. An insert that works in one pipe may restrict another. A flange that lies flat on one substrate may bridge an uneven sump elsewhere. The contractor should identify the existing drain, measure accessible components, and verify the proposed assembly rather than guessing from a rooftop photograph.
Why Commercial Roof Drainage Matters in Texas
Texas roofs can receive intense rainfall in short periods. Water that cannot reach or enter a drain may spread beneath loose laps, exploit punctures, overload low areas, saturate insulation, stain interiors, disrupt tenants, and accelerate corrosion or deck deterioration. Drainage problems can also appear far from the interior leak because water travels along insulation facers, deck flutes, joists, conduits, or ceiling systems.
Heat and ultraviolet exposure compound the problem. Repeated thermal movement can stress drain flashings and nearby membrane. Debris from storms, nearby trees, construction, rooftop service, or deteriorating materials can obstruct strainers and sumps. A maintenance plan therefore needs both routine cleaning and periodic inspection of the waterproofing connection.
Ponding Water Is a Symptom, Not a Diagnosis
Standing water may result from a blocked strainer, undersized outlet, settled insulation, compressed substrate, deck deflection, reverse slope, inadequate taper, equipment placement, or a drain installed above the surrounding roof. Cleaning is appropriate for a blockage, but cleaning cannot correct structural movement or poor geometry. A retrofit drain may improve inlet performance, yet it cannot create slope across an entire roof area by itself.
Signs a Roof Drain Needs Immediate Evaluation
Warning signs include recurring leaks near drain lines, loose strainers, cracked bowls, open clamping rings, displaced membrane, visible gaps, corrosion, sediment lines, vegetation, persistent ponding, interior staining, ceiling damage, rust at deck flutes, or water discharging where it should not. Gurgling, slow drainage, and backups during moderate rain can indicate restrictions within the leader rather than a roof-surface defect.
An emergency exists when water threatens electrical systems, medical operations, inventory, equipment, occupied spaces, or structural safety. Keep people away from unsafe areas, protect interiors when possible, and use qualified personnel. Do not send untrained employees onto a wet roof during lightning, high wind, or active severe weather.
Step-by-Step Retrofit Roof Drain Evaluation
Drainage evaluation follows the complete water path and distinguishes blockage from slope, substrate, piping, and structural conditions.
1. Document the Existing Roof Assembly
Identify the membrane or roof type, insulation, cover board, deck, number of roof layers, approximate age, repair history, warranties, and known moisture. Photograph the drain in context and close up. Mark its location on a roof plan so interior evidence and piping can be correlated.
2. Trace the Entire Water Path
Evaluation should follow water from the roof field into the sump, through the drain body and leader, and toward the approved discharge point. A watertight roof connection cannot compensate for a clogged, broken, disconnected, or undersized pipe. Plumbing or engineering support may be required for conditions outside the roofer's scope.
3. Measure Geometry and Components
Record accessible pipe diameter, drain opening, flange area, sump depth, surrounding slope, membrane termination, fastener locations, and clearance. Determine whether the proposed insert would reduce the effective opening. Confirm that the strainer will remain secure and serviceable.
4. Investigate Moisture and Substrate Condition
Wet insulation, deteriorated decking, rust, microbial concerns, or compressible materials cannot simply be trapped beneath a new flange. Moisture meters, infrared scanning, controlled test cuts, or core samples may be appropriate. Each technique has limitations and must be interpreted in context.
5. Review Primary and Overflow Drainage
Primary and secondary drainage serve different purposes. Overflows should remain independent and visibly discharge where required so a blockage is noticed. Do not assume that adding one drain resolves code, capacity, or emergency-overflow questions. The designer and local authority should evaluate required capacity and configuration.

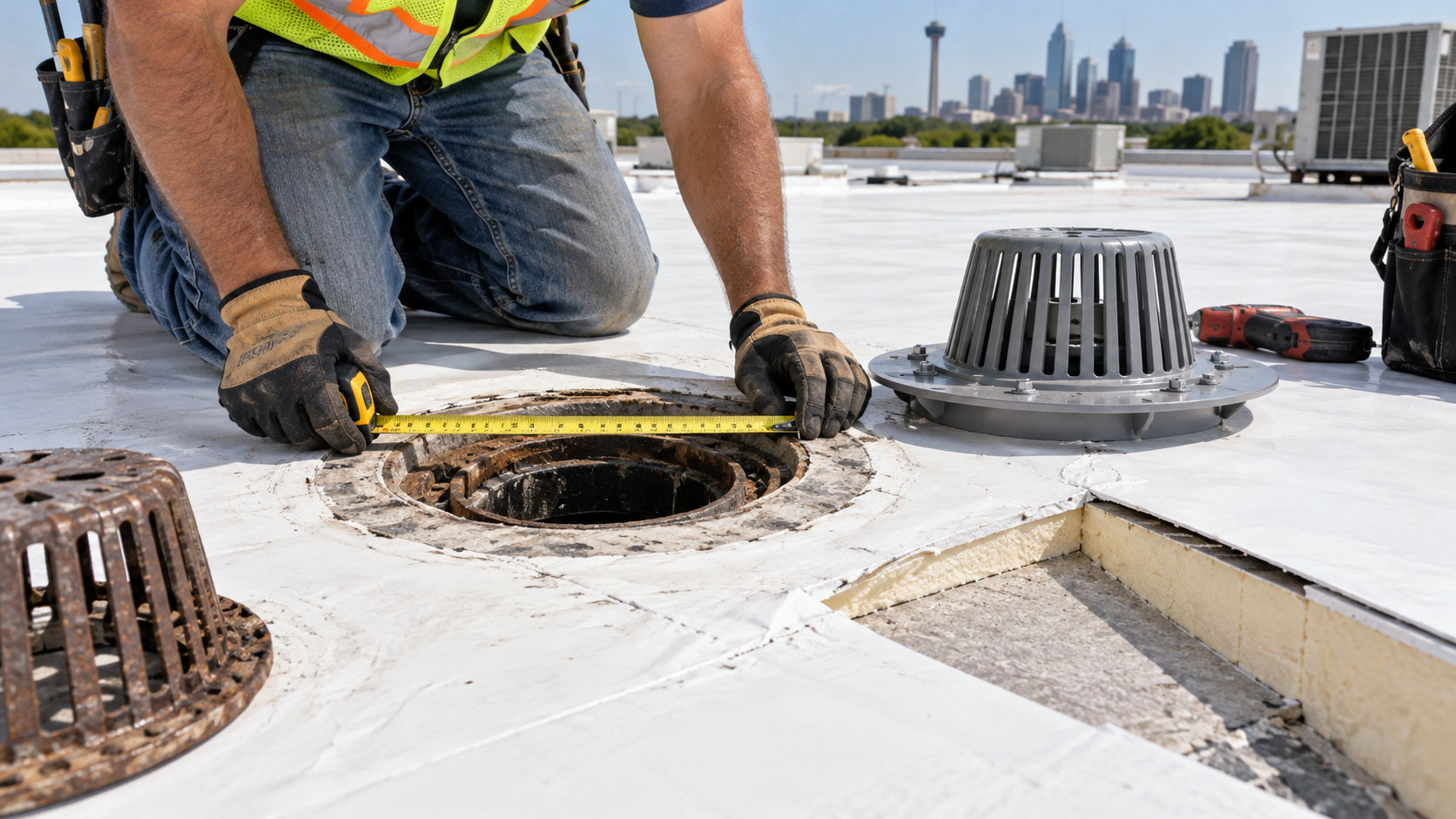

How a Retrofit Roof Drain Is Installed
Installation begins with safe access, interior protection, weather planning, and confirmation that the correct components are on site. The work area is cleaned, unstable material is removed, and the substrate is examined. Damaged insulation or deck is addressed within the approved scope before the new drain is seated.
The installer prepares the existing pipe and drain area according to the retrofit-drain and roof-system instructions. The drain is positioned at the correct elevation so water can enter without crossing a raised edge. Mechanical attachment, compression seals, clamping components, target patches, reinforcement, primers, adhesives, welding, or liquid flashing are completed as specified for the system.
Quality control should verify alignment, secure attachment, membrane integration, clamping, seal compression, strainer fit, and unobstructed flow. Photographs should document concealed work before it is covered. Water testing may be appropriate when it can be performed safely and without introducing uncontrolled water into the building.
Retrofit Drain Versus Full Drain Replacement
A retrofit drain may reduce demolition and interior exposure when the existing leader is sound and the selected assembly fits. Full replacement may be more responsible when the bowl is broken, piping is deteriorated, dimensions are incompatible, capacity is inadequate, structural work is necessary, or the drain cannot be integrated reliably with the new roof.
Price should not decide the method before condition is understood. A less invasive insert that restricts flow or seals against a damaged pipe can create recurring risk. A full replacement that is not coordinated with plumbing, structure, ceilings, or operations can create unnecessary disruption. The scope should explain why the chosen method fits the building.
Tapered Insulation, Sumps, and Crickets
Drain performance depends on water reaching the inlet. Tapered insulation can create positive slope, while a properly formed sump lowers the drain relative to the surrounding field. Crickets can redirect water around curbs, walls, or equipment. These elements must be designed together; random pieces of insulation can create new dams and valleys.
Existing low areas should be mapped before design. If deck deflection or structural movement is suspected, a roofer should not present tapered insulation as a structural repair. An appropriate engineer may need to evaluate the supporting system.
Maintenance After a Retrofit Drain Project
Inspect drains regularly and after major storms. Remove leaves, sediment, packaging, roofing debris, and vegetation without damaging the membrane. Confirm that strainers remain secured, sealants and flashings are intact, and water can reach the sump. Record findings with dated photographs.
Maintenance personnel should avoid using sharp tools that puncture the roof. Rooftop contractors should be told where drains, overflow paths, and fragile details are located. A service log helps distinguish a recent obstruction from a chronic slope or piping problem and supports capital planning.
Retrofit Roof Drains and Aging Gravel-Surfaced BUR
Aging gravel-surfaced built-up roofing requires caution. Gravel can conceal cracks, blisters, eroded felts, old patches, moisture pathways, and the actual condition of drain flashings. Loose aggregate may migrate into sumps and strainers. A quick visual review cannot establish that the concealed membrane is sound.
Selected gravel may need to be displaced, and moisture investigation or test cuts may be appropriate. If the BUR is deteriorated, repeatedly leaking, or difficult to document, installing a drain insert alone may not address the larger risk. Replacement with a more visible and maintainable assembly may provide a clearer long-term path and better support insurance conversations.
Frequently Asked Questions About Retrofit Roof Drains
Can a retrofit drain stop every roof leak near a drain?
No. The leak may originate at the membrane connection, piping, curb, wall, equipment, deck, or another location. Investigation should identify the pathway before work begins.
Does a retrofit drain fix ponding water?
It can improve a defective inlet, but it does not automatically correct settled insulation, reverse slope, deck deflection, inadequate taper, or undersized drainage.
Can a retrofit drain be installed over wet insulation?
Wet or damaged materials should be investigated and addressed. Trapping moisture can accelerate deterioration and undermine the new detail.
Who determines drain capacity and code compliance?
Applicable codes, approved documents, local authorities, manufacturers, and qualified designers govern the project. Structural or hydraulic questions may require an engineer or plumbing professional.
How long does installation take?
Timing depends on access, roof type, number of drains, substrate repairs, interior protection, weather, and coordination with piping or structural work. A proposal should describe assumptions and sequencing.
When should the drain be inspected again?
Inspect it after installation, during scheduled maintenance, after major storms, and whenever ponding, slow flow, interior leakage, or visible movement appears.
Why Choose Showtime Exteriors for Commercial Drainage Work?
Showtime Exteriors approaches drainage as part of the roof assembly, not as an isolated accessory. The team can inspect membranes, metal, flashings, insulation, penetrations, edges, drains, scuppers, coatings, and aging systems; document visible conditions; and develop a repair, restoration, retrofit, or replacement plan based on the property.
The company serves commercial property owners across Texas and understands the need for phasing, interior protection, tenant communication, photographs, closeout records, and responsive service. Call 817-400-ROOF (7663)* to schedule an evaluation.
Texas Weather Changes the Roofing Decision
Texas climate varies substantially. North Texas properties face hail, straight-line wind, temperature swings, and severe thunderstorms. Gulf Coast roofs experience humidity, intense rain, tropical weather, and wind-driven water. Central and West Texas buildings face strong sun, heat, drought, dust, and large temperature changes. The Panhandle and northern regions can also experience snow, ice, and freeze-thaw stress.
The National Weather Service provides official forecasts, warnings, climate information, and regional weather offices across Texas. Weather data can help establish timing and exposure, but it does not prove that a specific roof was damaged. The building still requires a property-specific inspection.
Wind design and edge attachment deserve particular attention. Damage often begins at perimeters, corners, ridges, eaves, flashings, or rooftop components where forces concentrate. The contractor should examine the complete assembly rather than focusing only on the most visible surface.
Rainfall also makes drainage performance critical. Low areas, clogged drains, inadequate scuppers, debris, poor slopes, or damaged gutters can allow water to remain against vulnerable details. A roofing company should determine whether the problem is maintenance, roof design, insulation slope, structural movement, or a combination.
Start With an Evidence-Based Roof Inspection
A contractor cannot responsibly recommend repair or replacement without understanding the property. The inspection should be systematic and should produce useful documentation.
Roof Surface and Detail Review
On steep roofs, inspectors should examine shingles or panels, ridges, valleys, eaves, rakes, sidewalls, headwalls, flashing, vents, pipes, skylights, and penetrations. On low-slope roofs, they should examine membrane seams, flashings, curbs, drains, scuppers, parapets, penetrations, transitions, edges, walkways, equipment areas, and previous repairs.
The contractor should also identify damage caused by foot traffic, dropped tools, equipment service, animals, debris, age, or incompatible materials. Not every defect is storm-related, and an accurate report should avoid unsupported conclusions.
Interior and Attic Evidence
Stains, wet insulation, rust, peeling coatings, damp ceiling materials, deck discoloration, and musty odors can help trace a leak. Water may travel horizontally or follow structural components before it appears inside, so the visible stain is not necessarily directly below the roof opening.
Moisture Testing and Core Samples
When concealed moisture is suspected, the contractor may recommend moisture meters, infrared scanning, controlled test cuts, or core samples. Each method has limitations. Infrared patterns require suitable conditions and interpretation. Core samples reveal the roof assembly at selected points but do not describe every square foot.
The contractor should explain what was tested, where, why, and how the findings affect the scope. Wet insulation generally should not be trapped beneath a new system or cosmetic coating.
Clear Inspection Reporting
A useful report identifies the property, roof areas, observed conditions, photographs, limitations, repair priorities, and recommended next steps. It separates emergency defects from routine maintenance and longer-term capital needs. Showtime Exteriors publishes additional commercial roofing resources for owners planning inspections and improvements.
Repair, Restore, or Replace?
The best roof decision does not push every property toward the same outcome. It matches repair, restoration, or replacement to present condition, moisture, risk, ownership goals, and expected service life.
When Repair Is Appropriate
Repair may be appropriate when a defect is localized, adjacent materials remain serviceable, wet components can be removed, and compatible products are available. Examples include a limited shingle loss, failed pipe boot, isolated membrane puncture, small open seam, damaged flashing, or localized metal detail.
A lasting repair corrects the failure pathway. It requires preparation, removal of unstable material, substrate correction where necessary, compatible products, and a quality check. Smearing sealant over a dirty or moving surface may temporarily change the appearance without creating a durable repair.
When Restoration May Be Viable
Restoration may extend service life when the roof is fundamentally sound, moisture is limited, drainage is acceptable, and the surface can receive the specified system. Restoration commonly involves repairs, cleaning, primers, reinforcement, and a compatible coating.
Coating should not be used to conceal wet insulation, unstable decking, widespread membrane failure, open flashings, or unresolved ponding. Adhesion testing, moisture evaluation, detail design, and manufacturer requirements should guide the scope.
When Replacement Is More Responsible
Replacement may offer better value when deterioration is widespread, repairs are recurring, moisture is extensive, the deck is compromised, materials are brittle, multiple incompatible layers exist, or the remaining service life cannot justify additional patching.
Replacement creates an opportunity to improve drainage, insulation, attachment, perimeter strength, flashings, access, traffic protection, and rooftop-equipment coordination. The new design should address conditions that shortened the previous roof's life rather than simply repeat them.
David's Priority: Aging Gravel-Surfaced BUR Is a Risk
Aging built-up roofing with gravel surfacing should be treated as an inspection, maintenance, leak-tracing, and insurance concern. Gravel can obscure cracks, blisters, deteriorated felts, failed laps, old patches, membrane erosion, and moisture pathways. Because the waterproofing surface is not fully visible, a quick walkover may not reveal the true condition.
Many gravel-surfaced BUR systems are also old and have incomplete repair histories. Age alone does not prove failure, but repeated leaks, concealed moisture, uncertain materials, and limited documentation increase risk. Some carriers may require additional evidence, restrict coverage, increase premiums, impose conditions, or decline renewal based on roof type, age, condition, claims, or underwriting rules.
A roofing contractor cannot promise a carrier's decision. The correct response is to investigate. Selected gravel may need to be displaced so the membrane can be examined. Moisture scanning, core samples, flashing review, drainage evaluation, and deck assessment may be appropriate. If the system is deteriorated, difficult to document, or near the end of useful service, replacement with a more visible and maintainable assembly may be the responsible long-term plan.
Showtime Exteriors does not frame gravel as a benefit or recommend cosmetic work that hides unresolved conditions. The goal is to give owners defensible documentation and a practical path before renewal deadlines, tenant damage, or emergency failure forces a rushed decision.
How to Evaluate the Contractor Installing the Roof
Verify Identity, Insurance, and Responsibility
Confirm the legal business name, physical contact information, current insurance, and the person responsible for the project. Ask whether employees, subcontractors, or both will perform the work and who directs them on site. The company named in the agreement should remain accountable from inspection through warranty service; an owner should not have to chase unrelated parties when a question arises.
Certificates of insurance provide evidence of coverage, although the actual policy controls. Ask for current documentation and confirm any project-specific requirements with appropriate professionals.
Ask for Relevant Experience
Experience should match the material, defect, building use, and project scale. A residential shingle reroof does not demonstrate the same capabilities as an occupied hospital repair, warehouse membrane replacement, restaurant PVC project, or metal retrofit.
Showtime Exteriors provides project references for owners reviewing relevant work. Ask what challenges were encountered, how operations were protected, and what documentation was provided at closeout.
Compare Scope Instead of Price Alone
One proposal may include full tear-off, wet-insulation removal, tapered drainage, cover board, flashings, edge metal, manufacturer inspection, and warranty fees. Another may assume the roof is dry and exclude those items. The totals are not comparable until assumptions are aligned.
For repairs, compare preparation, removal, materials, dimensions, substrate work, cleanup, photographs, and warranty. A low price for exposed surface sealant is not equivalent to an integrated repair that removes damaged components and restores the assembly.
Evaluate Communication and Supervision
Ask who will manage the project, provide daily updates, approve changes, monitor weather, and complete quality checks. The owner should have a point of contact.
Warranties: Ask What Is Actually Covered
Several warranties may apply. A material warranty may cover manufacturing defects. A contractor workmanship warranty may cover qualifying installation problems. A manufacturer system warranty may cover defined components and leak repairs when conditions are satisfied.
Ask who issues the warranty, what materials and labor are included, whether coverage is prorated, how service is requested, what maintenance is required, and whether the warranty transfers. A long term does not automatically mean broad protection.
Storm damage, unauthorized penetrations, structural movement, standing water, chemical exposure, abuse, equipment leaks, and work by other trades may be excluded. The Federal Trade Commission's warranty guidance offers general consumer information, but the actual contract and warranty govern the project.
Storm Damage and Insurance Documentation
After a storm, photograph accessible conditions from safe locations, protect the interior, record affected rooms, save damaged materials when practical, retain receipts, and follow policy notice and mitigation requirements. Do not climb onto a wet or damaged roof.
The Texas Department of Insurance publishes storm recovery guidance for consumers. Policy terms, deductibles, exclusions, deadlines, depreciation, and settlement processes vary, so contact the carrier or insurance professional about the specific policy.
A roofing company can inspect physical conditions, document findings, provide estimates, perform emergency protection, and complete authorized work. It should not guarantee claim approval, promise a settlement, improperly waive a deductible, or interpret coverage as an attorney or public adjuster.
The report should distinguish observed storm damage from age, maintenance, foot traffic, manufacturing characteristics, prior repairs, and mechanical damage. Accurate evidence is more credible than inflated claims.
Safety and Property Protection
Roofing work involves fall, ladder, electrical, heat, weather, tool, material-handling, debris, and pedestrian hazards. OSHA provides roofing safety resources for employers and workers. A professional company should plan access, fall protection, staging, housekeeping, weather response, and separation from occupants.
Residential protection may include landscaping, pools, vehicles, windows, siding, driveways, and neighboring homes. Commercial protection may include tenant entrances, emergency exits, deliveries, equipment, inventory, ceilings, walkways, and public areas.
Daily tear-off should be limited to an area the crew can make watertight. Temporary tie-ins require special attention because Texas weather can change quickly. Materials should be secured against wind and protected from moisture.
Red Flags When Hiring a Texas Roofer
Be cautious when a contractor recommends replacement before inspecting, refuses to provide a written scope, cannot identify the existing roof system, or promises an insurance result. High-pressure urgency is not technical evidence.
Other red flags include vague material descriptions, unusually large unexplained payments, incomplete insurance documentation, improper deductible offers, reluctance to identify the crew, no process for concealed conditions, or refusal to discuss safety and cleanup.
For commercial roofs, be cautious if the company treats coating as a universal cure, ignores wet insulation, minimizes drainage, or speaks positively about an aging gravel-surfaced BUR system without investigating concealed conditions.
What a Strong Retrofit Drain Proposal Should Include
A useful proposal identifies each drain location, existing roof type, accessible pipe size, proposed drain model, connection method, membrane flashing detail, substrate repairs, insulation work, sump construction, strainer, testing, interior protection, access, cleanup, exclusions, and warranty. It should state whether plumbing, structural engineering, hazardous-material testing, ceiling removal, or code design is included or assigned to others. Photographs and a roof plan make the scope easier to compare.
Ask how concealed deterioration will be handled. The agreement should provide unit prices or a written change process for wet insulation, rusted deck, damaged piping, or unexpected layers. It should also explain how the crew will keep the building dry if weather changes and how drains will remain protected from construction debris.
Drainage work should be coordinated with the broader roof plan. If the membrane is near the end of service, repeatedly leaking, or scheduled for replacement, an isolated retrofit may have limited value. If the roof is otherwise serviceable, a correctly designed drain repair can protect the asset and improve maintenance. The contractor should explain expected service, limitations, inspection frequency, and future compatibility.
Before approval, compare proposals line by line rather than choosing a drain by price alone. Confirm measurements, materials, attachment, waterproofing, discharge, overflow provisions, safety, scheduling, testing, documentation, and responsibility in writing. After completion, retain product data, photographs, invoices, warranties, and inspection notes with the building records. Those documents help future contractors understand what was installed and help owners track recurring water behavior after major storms.
Owners should also decide who will inspect the drain after completion. Facility staff can perform routine visual checks from safe locations, but membrane movement, loose clamping, damaged strainers, recurring ponding, or interior leakage warrants professional evaluation. Maintenance records should note weather, debris, cleaning, repairs, and photographs. If the building changes use, adds equipment, modifies piping, or receives a new roof, the drainage design should be reviewed again. Water behavior can change when curbs, solar arrays, walkways, additions, or insulation alter flow paths. Good stewardship means keeping the drain accessible, preventing stored materials from blocking water, and correcting small defects before they damage insulation, deck, ceilings, inventory, or occupied spaces across the entire property.
